Nuremberg, Germany -- March 14th-16th
EMBEDDED WORLD 2023
At Embedded World 2023, our Intelligent Memory team is excited to present our low-density eMMC Flash memory products; DDR3 High Density 8Gb components and 16GB modules, as well as well as our low-density LPDDR4 components - not to mention the release of our DDR5 modules this year as well!
Our focus at IM is on legacy memory and storage products, addressing the needs of our customers in the industrial and embedded computing markets. So we are able to offer you some relief should you be dealing with discontinuations from large memory manufacturers over the past and upcoming months.
We are one of the few memory manufacturers that offer DRAM components as well as DRAM modules ranging from SDRAM to DDR4, with DDR5 coming in Q2 2023! In addition to our wide range of DRAM products, we are also proud to offer our customizable NAND Flash memory portfolio.
All memory products are available in a wide range of capacities and configurations, making IM’s portfolio one of the most comprehensive offerings in the market from one single source. So look no further!
If you would like to get in touch or to set up a meeting, please write to us at im-emea-sales@intelligentmemory.com. We are excited to meet you in Nuremberg!

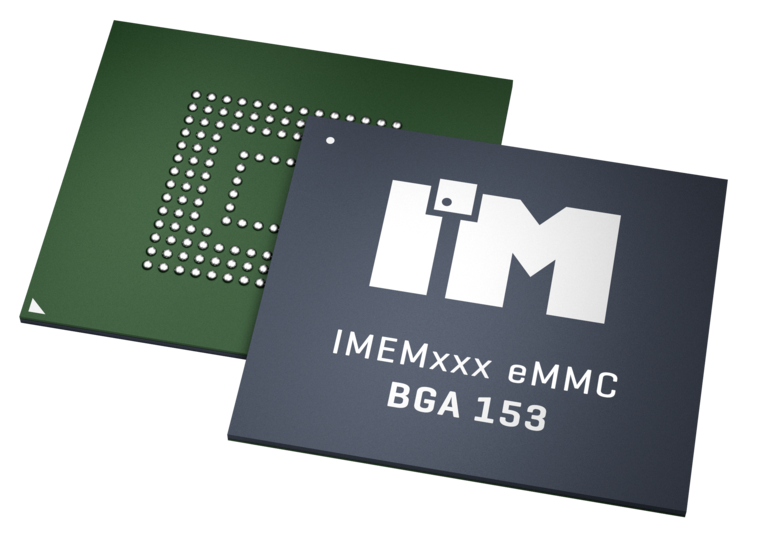

Flash eMMC Low Density
Intelligent Memory's low-density, eMMC, 153-Ball products are the perfect choice for your smaller designs. Along with being created for longevity, they offer vibration resistant options, exceptional power efficiency, and are available in extended commercial as well as industrial temperature grades.
Download the flyer to learn more.
Learn more about ALL of our eMMC Interface Products.
If you would like to learn more information and details about our eMMC low-density parts, please contact us at sales@intelligentmemory.com.
We look forward to hearing from you!
DDR2 2Gb Components
- 1.8V Voltage
- Speeds up to 400MHz (800Mbps)
- Commercial & Industrial Temperature Grades
- Automatic and Controlled Precharge Command
- Available in 60-ball FBGA for x4 and x8 components, as well as 84-ball FBGA for x16 component
Search through ALL of our DDR2 Components and DDR2 Modules!
| Part Number | Organization | Package | Temperature |
|---|---|---|---|
| IM2G16D2DBBG-25 | 128Mx16 | FBGA-84 | 0°C to +95°C |
| IM2G16D2DBBG-25I | 128Mx16 | FBGA-84 | -40°C to +95°C |
| IM2G08D2DBBG-25 | 256Mx8 | FBGA-60 | 0°C to +95°C |
| IM2G08D2DBBG-25I | 256Mx8 | FBGA-60 | -40°C to +95°C |
| IM2G04D2DBBG-25 | 512Mx4 | FBGA-60 | 0°C to +95°C |
DDR3 8Gb Components
We have developed a unique way to manufacture 8Gb DDR3 Single Chip Select components with existing DRAM process technologies. From an applications point of view, they see these components work like a monolithic device. Intelligent Memory's 8Gb Single Chip Select components are compatible to the JEDEC pinout of monolithic devices and provide the simplest path to upgrade applications using DDR3 DRAM. They allow for new maximum levels of memory density without altering existing board-layouts or designs.
- FBGA-78 & FBGA96 Packages
- Voltage: 1.35V/1.5V
- Speeds of up to 800MHz (1600Mbps) & 933MHz (1866Mbps)
- Commercial and Industrial Temperature Grades (0°C to +95°C and -40°C to +95°C)
Download our DDR3 High Density flyer to learn more about this product family and what it can do for your application!
Take at ALL of our DDR3 Components!
| DDR3 8Gb Part Number | Organization | Chip select | DDR3 8Gb Part Number | Organization | Chip select |
|---|---|---|---|---|---|
| IM8G08D3FFBG-125 | 1Gx8 | 1 | IM8G08D3FFBG-107 | 1Gx8 | 1 |
| IM8G08D3FFBG-125I | 1Gx8 | 1 | IM8G08D3FFBG-107I | 1Gx8 | 1 |
| IM8G08D3FFDG-125 | 1Gx8 | 2 | IM8G08D3FFDG-107 | 1Gx8 | 2 |
| IM8G08D3FFDG-125I | 1Gx8 | 2 | IM8G08D3FFDG-107I | 1Gx8 | 2 |
| IM8G04D3FFDG-125 | 2Gx4 | 2 | IM8G04D3FFDG-107 | 2Gx4 | 2 |
| IM8G04D3FFDG-125I | 2Gx4 | 2 | IM8G04D3FFDG-107I | 2Gx4 | 2 |
| IM8G16D3FFBG-125 | 512Mx16 | 1 | IM8G16D3FFBG-107 | 512Mx16 | 1 |
| IM8G16D3FFBG-125I | 512Mx16 | 1 | IM8G16D3FFBG-107I | 512Mx16 | 1 |
| IM8G16D3FFDG-125 | 512Mx16 | 2 | IM8G16D3FFDG-107 | 512Mx16 | 2 |
| IM8G16D3FFDG-125I | 512Mx16 | 2 | IM8G16D3FFDG-107I | 512Mx16 | 2 |
DDR3 16GB Modules
We are proud to offer the very first 16GB unbuffered DIMMs and SO-DIMMs memory modules that are based on our 8Gb Single Chip Select components. The modules follow the 2 ranks JEDEC specification.
- Voltage: 1.35V and 1.5V
- Industrial Temperature Grade (-40°C to +95°C)
- All available for purchase
Download our DDR3 High Density flyer to learn more about this product family and what it can do for your application!
Take a look at ALL of our DDR3 Modules!
| DDR3 16GB Part Number | Subcategory | Organization | Speed | Form factor | Height | Component | Chip select |
|---|---|---|---|---|---|---|---|
| IMM2G72D3LMUD8AG-F125 | ECC Mini-UDIMM | 1Gx2x72 | PC3-12800 (1600MT/s) | 244pin MiniDIMM | 30.00mm | 1Gx8 | 2 |
| IMM2G72D3DUD8AG-F107 | ECC UDIMM | 1Gx2x72 | PC3-14900 (1866MT/s) | 240pin DIMM | 30.00mm | 1Gx8 | 2 |
| IMM2G72D3LSOD8AG-F125 | ECC SODIMM | 1Gx2x72 | PC3-12800 (1600MT/s) | 204pin SODIMM | 30.00mm | 1Gx8 | 2 |
| IMM2G72D3MRQ8AG-F18 | Mini-RDIMM | 512Mx4x72 | PC3-8500 (1066MT/s) | 244pin MiniDIMM | 30.00mm | 1Gx8 (2CS) | 4 |
| IMM2G64D3LDUD8AG-F107 | Non-ECC UDIMM | 1Gx2x64 | PC3-14900 (1866MT/s) | 240pin DIMM | 30.00mm | 1Gx8 | 2 |
| IMM2G64D3LSOD8AG-F107 | Non-ECC SODIMM | 1Gx2x64 | PC3-14900 (1866MT/s) | 204pin SODIMM | 30.00mm | 1Gx8 | 2 |
| IMM2G72D3LDVD8AG-F125 | VLP ECC UDIMM | 1Gx2x72 | PC3-12800 (1600MT/s) | 240pin VLP DIMM | 18.75mm | 1Gx8 | 2 |
| IMM2G72D3RVQ8AG-F15E | VLP RDIMM | 512Mx4x72 | PC3-10600 (1333MT/s) | 240pin VLP DIMM | 18.75mm | 1Gx8 (2CS) | 4 |
| IMM2G72D3RVQ8BG-D15E | VLP RDIMM | 512Mx4x72 | PC3-10600 (1333MT/s) | 240pin VLP DIMM | 18.75mm | 512Mx8 | 4 |
| IMM2G72D3RVD4BG-F125 | VLP RDIMM | 1Gx2x72 | PC3-12800 (1600MT/s) | 240pin VLP DIMM | 18.75mm | 2Gx4 (2CS) | 2 |
LPDDR4 4Gb Components
- Low Voltage Power Supply 1.8V and I/O at 1.1V
- Mobile features for lower power
- ZQ Calibration
- Integrated ECC error correction
- Industrial and High Temperature Grades
Take a look at ALL of our LPDDR4 Components!
| Part number | Organization | Speed | Voltage | Package | Temperature | Capacity | Chip select |
|---|---|---|---|---|---|---|---|
| IME4G32L4HABG-062H | 128Mx32 | 1600MHz (3200Mbps) | 1.1V | FBGA-200 | -40°C to +105°C | 4Gb | 2 |
| IME4G32L4HABG-062HA | 128Mx32 | 1600MHz (3200Mbps) | 1.1V | FBGA-200 | -40°C to +105°C | 4Gb | 2 |
| IME4G32L4HABG-062I | 128Mx32 | 1600MHz (3200Mbps) | 1.1V | FBGA-200 | -40°C to +95°C | 4Gb | 2 |
| IME4G32L4HABG-062IA | 128Mx32 | 1600MHz (3200Mbps) | 1.1V | FBGA-200 | -40°C to +95°C | 4Gb | 2 |
DDR5 Module Coming Soon!
- Multiple Form Factors: Non-ECC UDIMM, ECC UDIMM, non-ECC SODIMM, ECC SODIMM, RDIMM
- The use of original DRAM components to fulfill industrial standards
- Higher Speeds & Greater Bandwidth: Achieving speeds up to 5600MT/s (PC5-44800)
- Lower Power Requirements: Need only 1.1V, better power efficiencies than DDR4
- Capacity: 8GB to 64GB
Please contact us to get in touch with our product marketing team and learn more information about our up and coming DDR5 module offering!
| DIMM Type | Form Factor | Capacity | Max. Speed | Temperature | Height | Component Data Width |
|---|---|---|---|---|---|---|
| RDIMM | 288-pin DIMM | 16GB, 32GB, 64GB, 128GB | PC5-44800 (5600MT/s) | Commercial | 1.23" | x8 |
| ECC UDIMM | 288-pin DIMM | 8GB, 16GB, 32GB, 64GB | PC5-44800 (5600MT/s) | Commercial, Industrial | 1.23" | x8 |
| ECC SODIMM | 262-pin SODIMM | 8GB, 16GB, 32GB, 64GB | PC5-44800 (5600MT/s) | Commerical, Industrial | 1.18" | x8 |
| Non-ECC UDIMM | 288-pin DIMM | 8GB, 16GB, 32GB, 64GB | PC5-44800 (5600MT/s) | Commercial, Industrial | 1.23" | x8 |
| Non-ECC SODIMM | 262-pin SODIMM | 8GB, 16GB, 32GB, 64GB | PC5-44800 (5600MT/s) | Commercial, Industrial | 1.18" | x8 |
