DRAM Modules - DDR4

DDR4 offers up to 40% power savings and as much as double the bandwidth of earlier generations, providing memory that’s built for performance. Intelligent Memory produces DDR4 memory modules meant to meet the rigorous demands of industrial applications, complying with JEDEC standards and available in commercial and industrial temperature working environments.

Use our memory in applications that require standard or very low-profile modules, in unbuffered or registered DIMMs. Our in-house manufacturing and testing capabilities ensure the variety you need with the dependability that you trust.

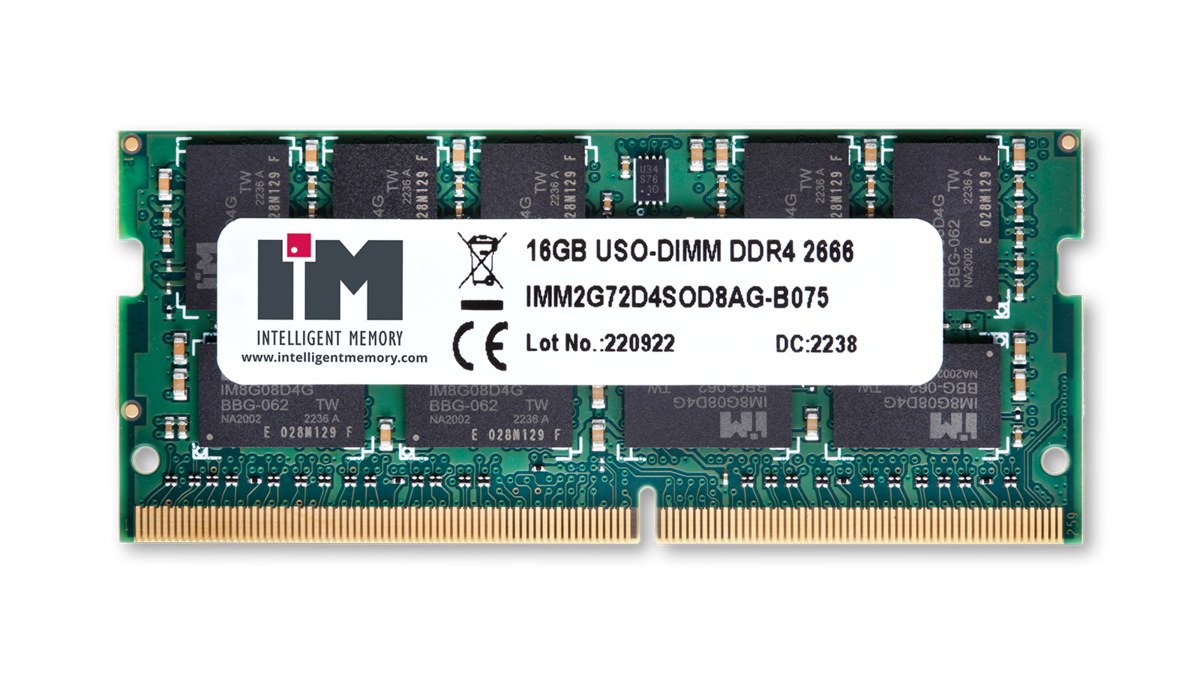

Intelligent Memory DDR4 Module
DDR4 Modules
DIMM Type Form Factor Capacity Max. Speed Temperature Height Component Data Width
RDIMM 288pin DIMM 64GB, 32GB, 16GB, 8GB PC4-25600 (3200MT/s) Commercial 1.23" x4, x8
ECC UDIMM 288pin DIMM 32GB, 16GB, 8GB, 4GB PC4-25600 (3200MT/s) Commercial, Industrial 1.23" x8
ECC SODIMM 260pin SODIMM 32GB, 16GB, 8GB, 4GB PC4-25600 (3200MT/s) Commercial, Industrial 1.18" x8, x16
Mini-RDIMM 288pin MiniDIMM 16GB, 8GB, 4GB PC4-19200 (2400MT/s) Commercial, Industrial 1.18" x8
ECC Mini-UDIMM 288pin MiniDIMM 32GB, 16GB, 8GB, 4GB PC4-19200 (2400MT/s) Commercial, Industrial 1.18" x8
Non-ECC UDIMM 288pin DIMM 32GB, 16GB, 8GB, 4GB, 2GB PC4-25600 (3200MT/s) Commercial, Industrial 1.23" x8, x16
Non-ECC SODIMM 260pin SODIMM 32GB, 16GB, 8GB, 4GB, 2GB PC4-25600 (3200MT/s) Commercial, Industrial 1.18" x8, x16
VLP RDIMM 288pin VLP DIMM 32GB, 16GB, 8GB, 4GB PC4-23400 (2933MT/s) Commercial 0.738" x4, x8
VLP Mini-RDIMM 288pin VLP MiniDIMM 16GB, 8GB, 4GB PC4-19200 (2400MT/s) Commercial, Industrial 0.738" x8
VLP ECC Mini-UDIMM 288pin VLP MiniDIMM 16GB, 8GB, 4GB PC4-19200 (2400MT/s) Commercial, Industrial 0.738" x8
VLP ECC UDIMM 288pin VLP DIMM 32GB, 16GB, 8GB, 4GB PC4-21300 (2666MT/s) Commercial, Industrial 0.738" x8
ULP ECC SODIMM 260pin ULP SODIMM 16GB, 8GB, 4GB PC4-21300 (2666MT/s) Commercial, Industrial 0.7" x8

*Commercial = 0°C to +95°C  /  Industrial = -40°C to +95°C  /  High = -40°C to +105°C

Key features
  • Different Form Factors: Non-ECC UDIMM, ECC UDIMM, non-ECC SODIMM, ECC SODIMM, RDIMM, mini-RDIMM and ECC mini-UDIMM
  • Higher bandwidth performance (up to PC4-25600)
  • Capacity: 2GB to 64GB
  • PCB Height: Standard, Very Low Profile, Ultra Low Profile
  • JEDEC Standard 1.2V
  • Operating Temperature: Commercial and Industrial Grade
  • Environmental Compliance, longevity and assembly service available
  • Fully tested in applications environment for stability and performance
  • Conformal coating, underfill and anti-sulfide available upon request
