DRAM Components - LPDDR4

Intelligent Memory's Low Power Double Data Rate DRAMs offer an advantage over traditional DDR for achieving low power in applications where it makes a critical difference, including tablets, SSD cards, cellular devices, and automotive systems. Fully JEDEC compliant, Intelligent Memory’s LPDDR4 integrates error-correction capabilities that consume less energy than its predecessors and operates over the industrial and high temperature ranges.

So what’s the difference between DDR4 and LPDDR4? LPDDR4 is specifically designed for mobile devices, offering slightly lower operating power in favor of power savings—perfect for smaller form factors.

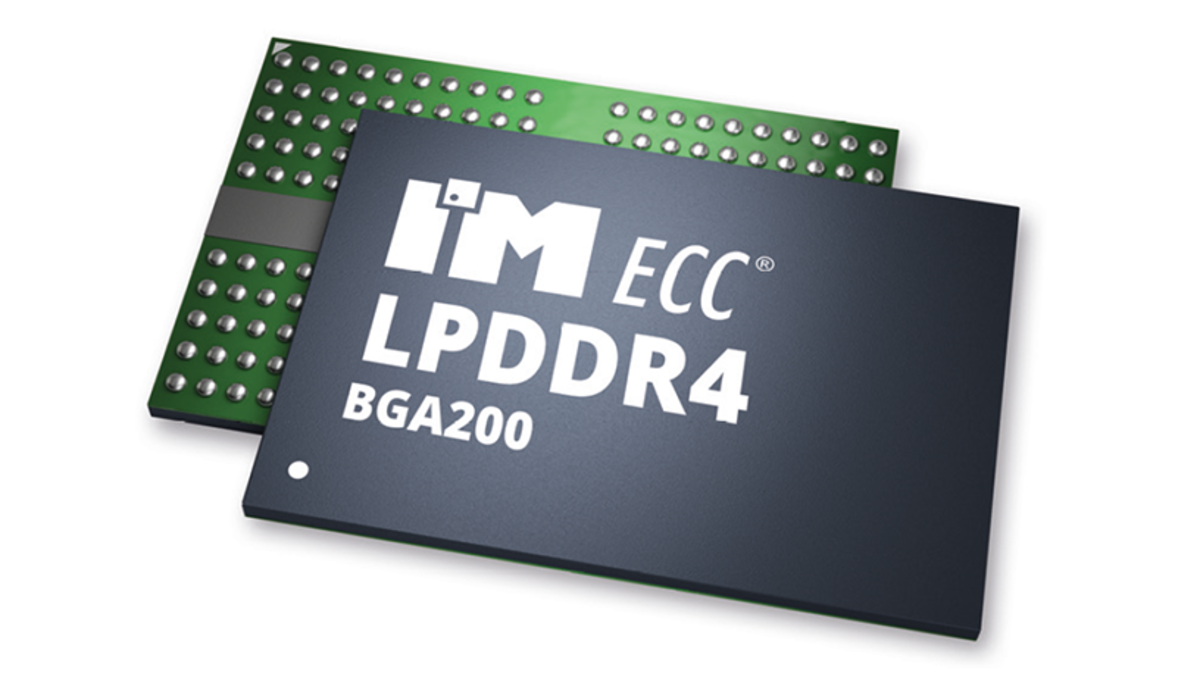

Intelligent Memory LPDDR4 Components
LPDDR4(x) Components
Density Org Max Speed (Data Rate Mbps) Packages *Temperature ECC AEC-Q100

8Gb

Two channel (2x16)

1600MHz (3200Mbps)

FBGA-200

I, H

Y

Y

4Gb

Two channel (2x16)

1600MHz (3200Mbps)

FBGA-200

I, H

Y

Y

*For ECC LPDDR4 8Gb & 4Gb:  Industrial = -40°C to +95°C / High = -40°C to +105°C

Key features
  • Low Voltage Power Supply at 1.1V
  • Mobile features for lower power
  • ZQ Calibration
  • Integrated ECC error correction
  • 4Gb x32 and 8Gb x32 available
  • Fast data rates up to 3200Mbps
  • Fully synchronous operation
  • Long-term support
  • Applications: Portable electronics, embedded board for the commercial and industrial markets.
